Autopilot Panel — S-TEC Style
Modeled on the S-TEC autopilot in X-Plane, with HDG, NAV, APR, REV, ALT and VS mode buttons, a vertical speed selector and a mode display.
There's no engage button on the panel. Engage and disconnect live on the yoke, as they do in the aircraft. The sim is the source of truth: modes shown on the panel are the modes X-Plane is flying.
Features
- HDG, NAV, APR, REV, ALT, VS modes
- VS selector knob
- Black-background mode display
- Engage / disconnect on the yoke
Technical
| Interface | USB |
|---|---|
| Simulator | X-Plane 12 via SummitBridge |
| Identification | Unique device ID, module name and firmware version reported to SummitBridge |
| Sync | Two-way; the sim is the source of truth |
| Display | Black background; powers with sim avionics |
| Category | Avionics |
DIY builders: Summit modules work with the same SummitBridge software as our turnkey builds. See the certification roadmap for where the BATD effort stands.
Pairs well with

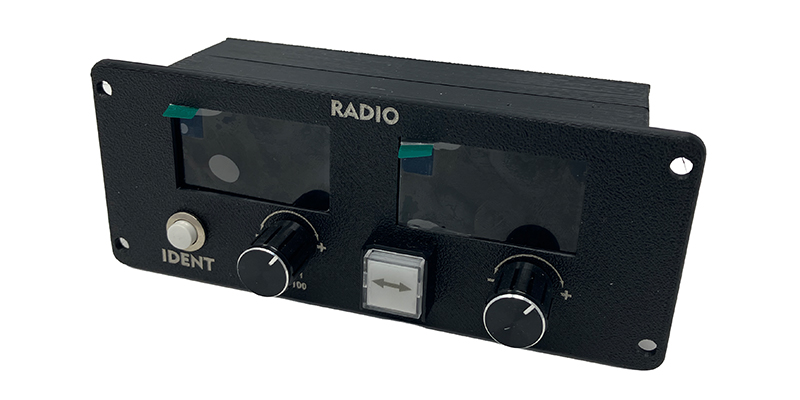

Radio Panel
Dual-display radio head with tuning knobs, frequency transfer and IDENT.

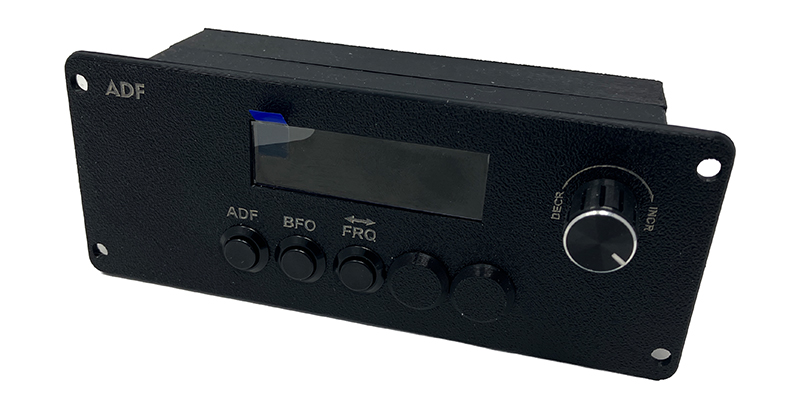

ADF Panel
