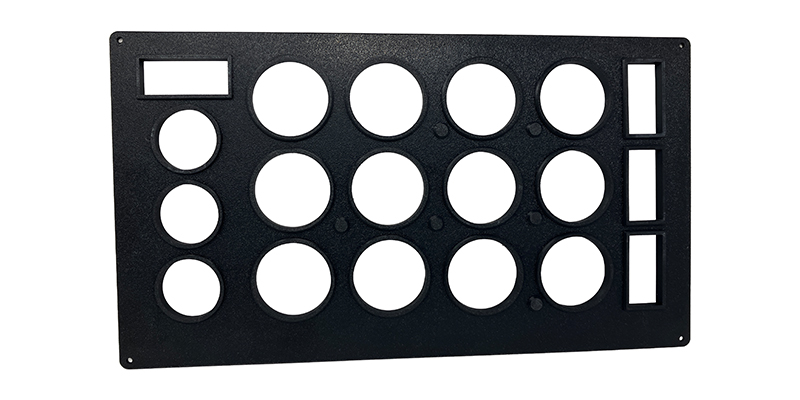

Summit Simulators Swappable Instrument Plates flight simulator panel module
In production SUMMIT / INSTRUMENT-PLATES

Swappable Instrument Plates

Quoted per build Sized and priced to your panel

Each plate is cut for a specific aircraft class: a VFR trainer, a complex single, a twin, or an IFR panel with knob cutouts. Swap the plate and the panel matches a different airplane.

This is what makes the system modular. A device can start as a 172 steam-gauge trainer and become a twin or glass panel later without rebuilding the frame.

Features

  • VFR, complex, multi-engine and IFR layouts
  • Knob-equipped variants
  • Tool-free swap

BATD requirements this module relates to

  • B.3.4.1(1) Standard instrument configuration
Add to a build request Back to catalog

Technical

InterfaceUSB
SimulatorX-Plane 12 via SummitBridge
IdentificationUnique device ID, module name and firmware version reported to SummitBridge
SyncTwo-way; the sim is the source of truth
CategoryCockpit & Structure

Used in

DIY builders: Summit modules work with the same SummitBridge software as our turnkey builds. See the certification roadmap for where the BATD effort stands.
